±0.3% linearity | 3600° adjustment | 100Ω–100KΩ | 2W @ 70°C | -55°C to +125°C

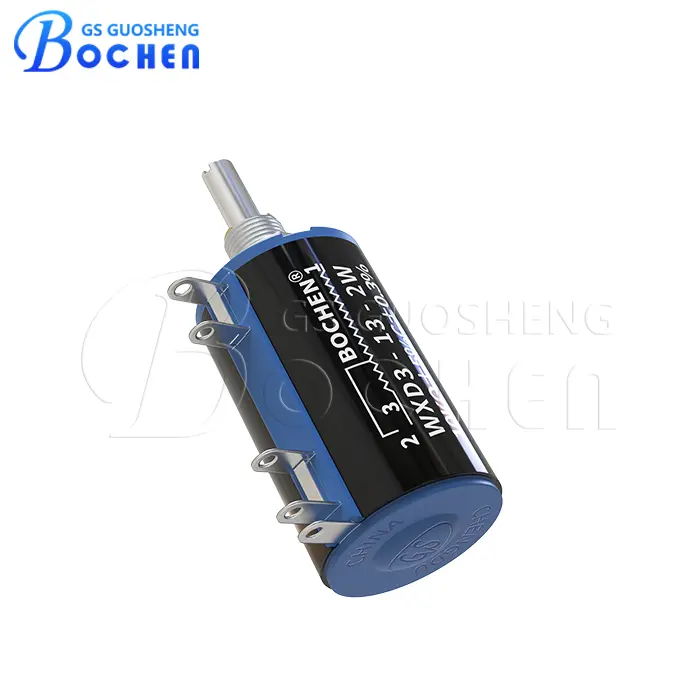

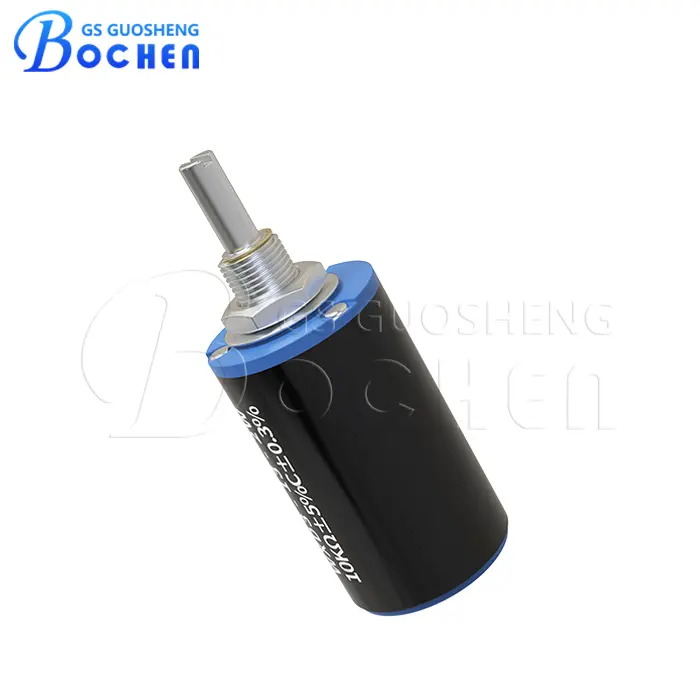

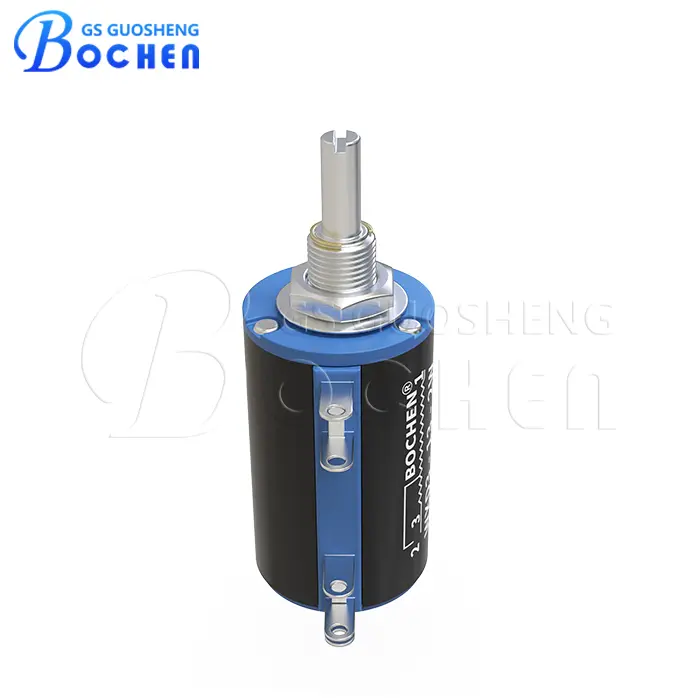

The BOCHEN WXD3-13 is a 2W precision wirewound potentiometer designed for applications requiring fine adjustment, stable electrical performance, and long-term mechanical operation.
With a 10-turn adjustment mechanism, ±0.3% independent linearity, and a wide resistance range, the WXD3-13 is suitable for precision calibration, test equipment, industrial control, instrumentation, DC voltage/current adjustment, and other applications where controlled and repeatable adjustment is required.
Available resistance options include 100Ω–100KΩ. Custom resistance values and shaft configurations are also available for OEM projects.
Precision Adjustment & Wirewound Construction
The WXD3-13 is a 10-turn precision wirewound potentiometer designed for applications requiring fine, repeatable adjustment. Its multi-turn adjustment mechanism provides approximately 3600° of mechanical travel, allowing engineers to make gradual and precise resistance adjustments during calibration, tuning, and control. With ±0.3% independent linearity, it is suitable for precision instruments, test equipment, industrial control systems, and other applications where adjustment accuracy is important.
Flexible Resistance & Mechanical Options
The WXD3-13 offers a wide resistance range from 100Ω to 100KΩ, with ±5% resistance tolerance, providing flexibility for different circuit designs and control requirements. Standard shaft options include 16 mm and 20 mm, making the potentiometer adaptable to different equipment and installation configurations. For OEM and customized projects, BOCHEN can discuss resistance values, shaft dimensions, and other mechanical requirements according to the customer's application and technical specifications.
Reliable Performance for Industrial Applications
Built for repeated adjustment and long-term operation, the WXD3-13 features a durable construction with high corrosion resistance and strong mechanical performance. Its reliable operating characteristics and long service life make it suitable for industrial equipment, instrumentation, automation systems, electronic control equipment, and other demanding applications. As a potentiometer manufacturer with 27+ years of manufacturing experience since 1999, BOCHEN provides factory-direct supply, customization options, and professional product selection guidance for distributors, OEMs, and industrial equipment manufacturers.

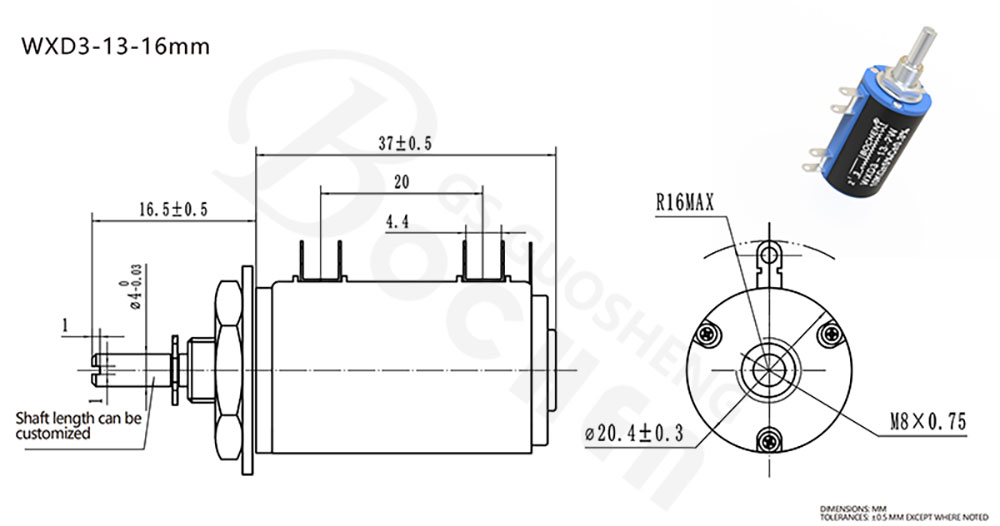

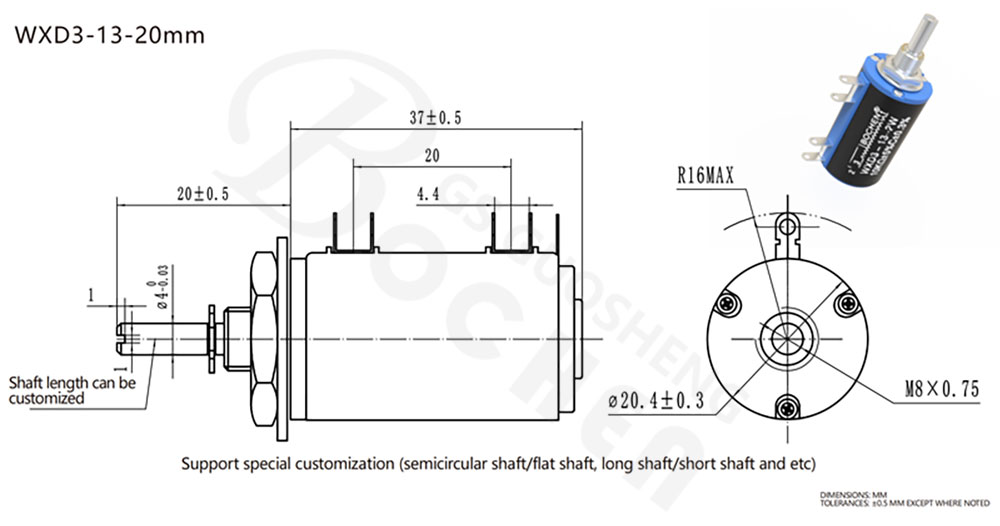

Available in standard and customizable dimensions for flexible installation.
Packaging specification:20 pieces per box.
The WXD3-13 is a 10-turn precision wirewound potentiometer with a rated power of 2W, designed for accurate and stable adjustment in electrical and electronic applications. Its multi-turn structure provides fine control for applications requiring precise voltage or current regulation. It is suitable for telecommunications equipment, electrical systems, electronic instruments, control equipment, and distribution cabinets.
When used as a voltage divider, the WXD3-13 provides continuously adjustable output voltage. Rotating the shaft moves the wiper along the resistive element, allowing the output voltage to be precisely adjusted according to the required setting. This makes it suitable for precision adjustment of DC or low-frequency voltage in electronic and control circuits.
When used as a rheostat, the WXD3-13 can be connected between one end terminal and the wiper to provide continuously variable resistance. The resistance value can be smoothly adjusted by rotating the shaft, making it suitable for applications that require variable resistance and precise control.
The WXD3-13 can also be used for current adjustment and control when connected appropriately within a circuit. The wiper provides a continuously adjustable resistance path, allowing the circuit current to be regulated according to the application requirements. Its 10-turn precision adjustment is particularly useful where fine and repeatable control is required.
• Factory-direct supply with competitive pricing and no unnecessary middlemen.
• RoHS and REACH compliant, with strict quality control throughout the production process.
• Reliable production capacity for stable supply and efficient delivery.
• Professional technical support for product selection and application requirements.
• OEM and ODM services available for customized specifications and project requirements.
The WXD3-13 is a 10-turn precision wirewound potentiometer designed for accurate and stable adjustment of voltage, current, and resistance in electrical and electronic applications.
The WXD3-13 wirewound potentiometer has a rated power of 2W, making it suitable for applications requiring reliable adjustment performance.
The WXD3-13 wirewound potentiometer is available in a resistance range of 100Ω to 100KΩ, with a standard resistance tolerance of ±5%.
The WXD3-13 is a 10-turn wirewound potentiometer, providing finer and more precise adjustment than a conventional single-turn potentiometer.
The WXD3-13 wirewound potentiometer is available with 16 mm and 20 mm shaft options. Customized shaft specifications can also be discussed according to project requirements.
The WXD3-13 wirewound potentiometer is suitable for telecommunications equipment, electrical systems, electronic instruments, control equipment, and distribution cabinets. It can also be used for precision adjustment of DC or low-frequency voltage and current.
Yes. BOCHEN provides customization for the WXD3-13 wirewound potentiometer according to application requirements, including resistance value, dimensions, shaft specifications, power rating, and other product parameters.
Yes. Its 10-turn wirewound construction enables fine and continuous adjustment, making it suitable for applications requiring precise and repeatable settings.
Yes. Samples are available for product evaluation and application testing. Please provide your required specifications and quantity to confirm sample availability.
Provide your required resistance value, power rating, shaft dimensions, installation requirements, and application conditions. BOCHEN can provide professional wirewound potentiometer selection guidance based on your project requirements.
Yes. The WXD3-13 can be considered as an alternative for applications requiring similar key specifications, precision adjustment, and reliable performance. Customers can provide their existing potentiometer specifications or application requirements, and BOCHEN can assist with product selection and specification matching.
